Subsea Connectors

Hydro Group design, manufacture and pressure test underwater electrical and optical connectors and connector-cable assemblies for unique and challenging subsea applications. We typically work in three key energy markets, oil & gas, marine renewable energy, and defence, where we focus on technology and innovation for subsea applications.

The growing complexity of underwater engineering projects requires specialist capabilities, industry knowledge, and experience. Hydro Group has this capability and more; its dedicated engineering team has decades of industry knowledge and innovation, having achieved many unique connectivity solutions for various subsea applications. Supporting our design engineering team is a professional team of fully trained and equipment certified electrical engineers and technicians.

Our connectors have been tested extensively for performance and endurance, both internally and externally by third-party verification companies, and pressure tested to 10,000 PSI / 6860 MSW / 689 BAR. Importantly, our connectors have a proven track record over many years on local, national and international projects.

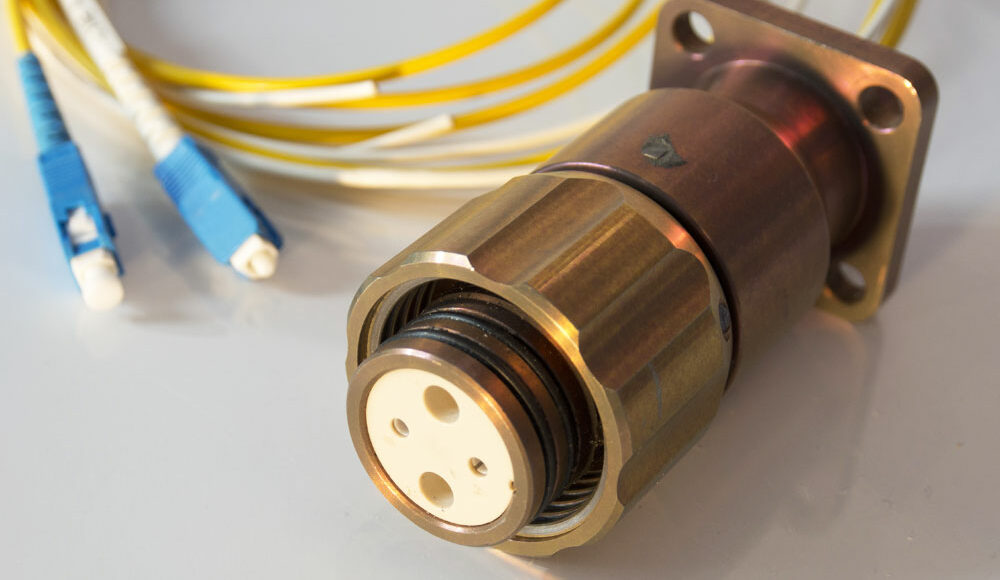

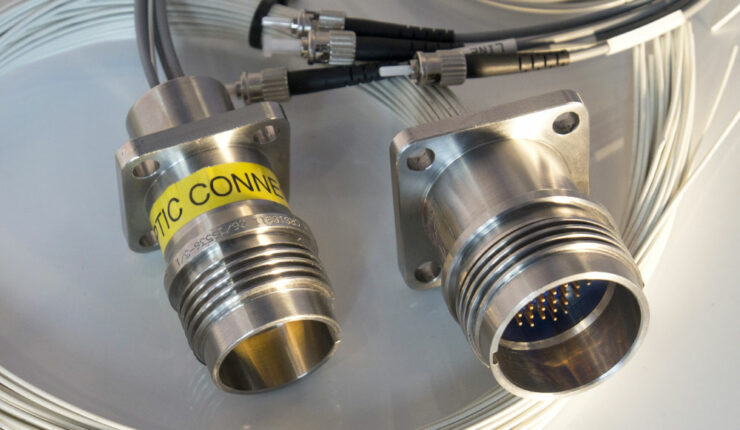

• Fibre Optic Connectors
• EXD-rated connectors
• HRC Hydro Renewable Connector (36kV)

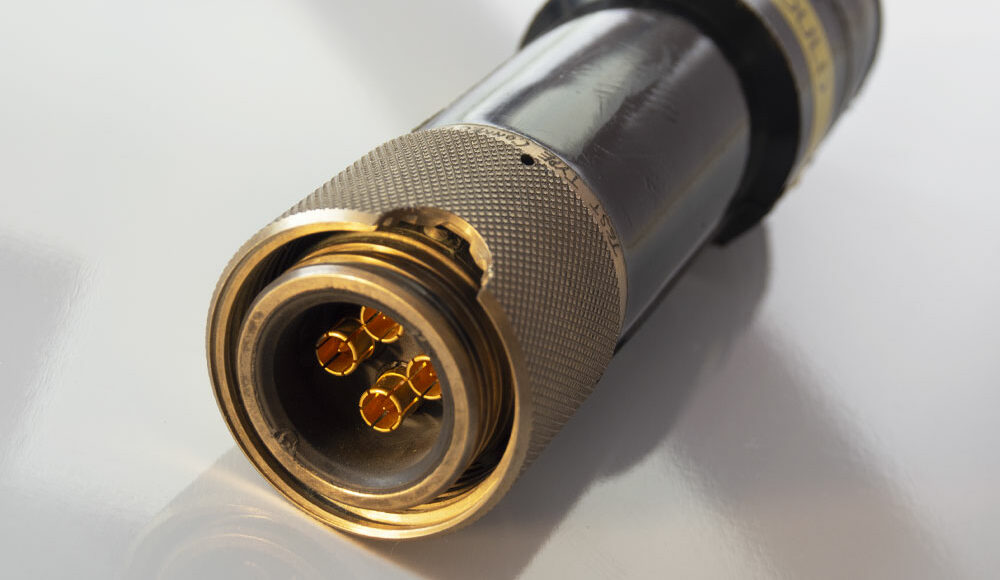

• Surface Mateable Coaxial Connectors, Metal and Rubber Keyed
• Surface Mateable Hybrid Coaxial Electrical Connectors, Metal Keyed
• HMK Hydro Metal Keyed Underwater Mateable Electrical Connectors
• HRM Hydro Rubber Moulded Connectors (website link)
• HDM Hydro Deck Mate connector
• HRS Hydro Rubber Sealing Underwater Mateable Electrical Connectors

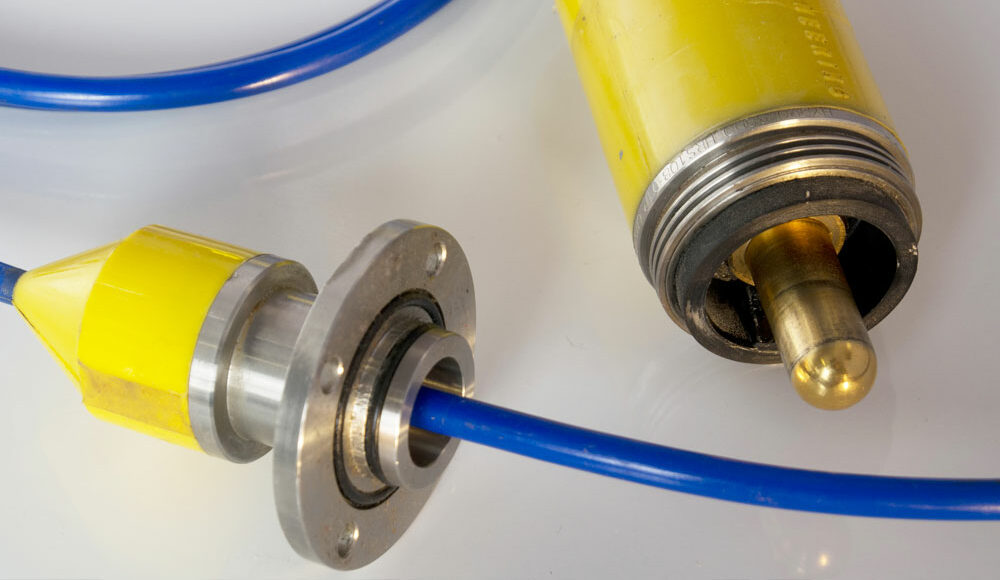

subsea connector

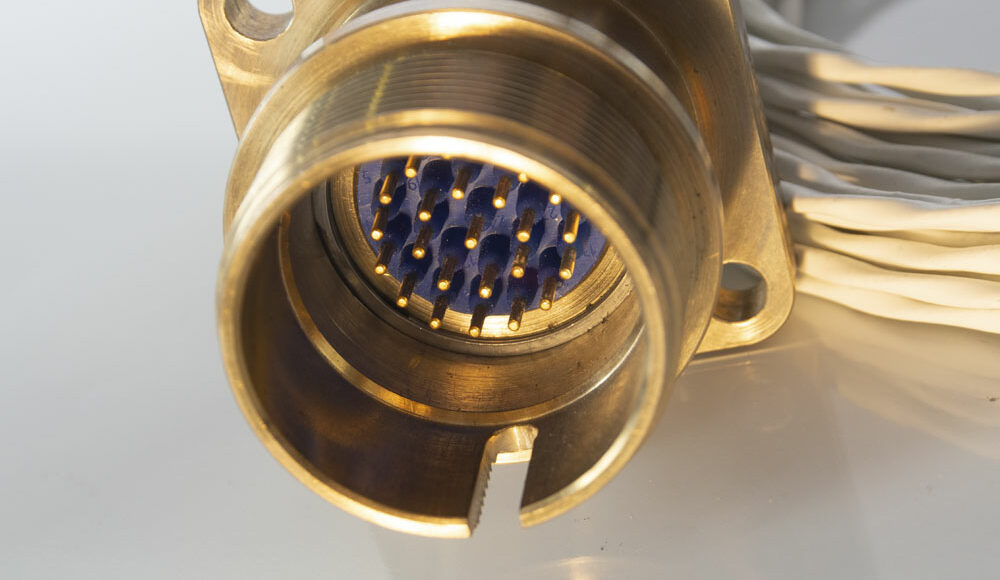

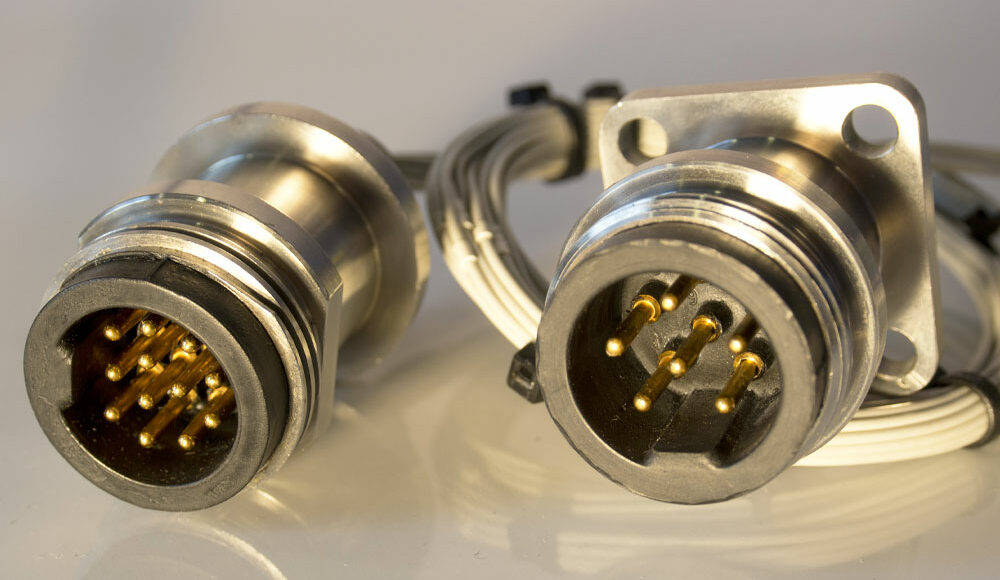

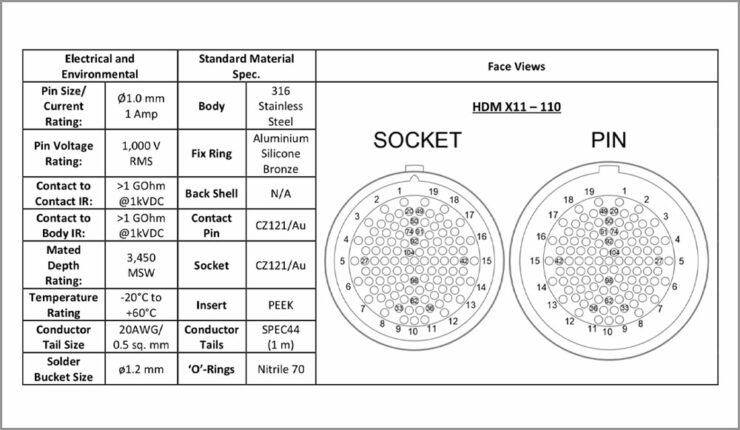

connector socket and pin types

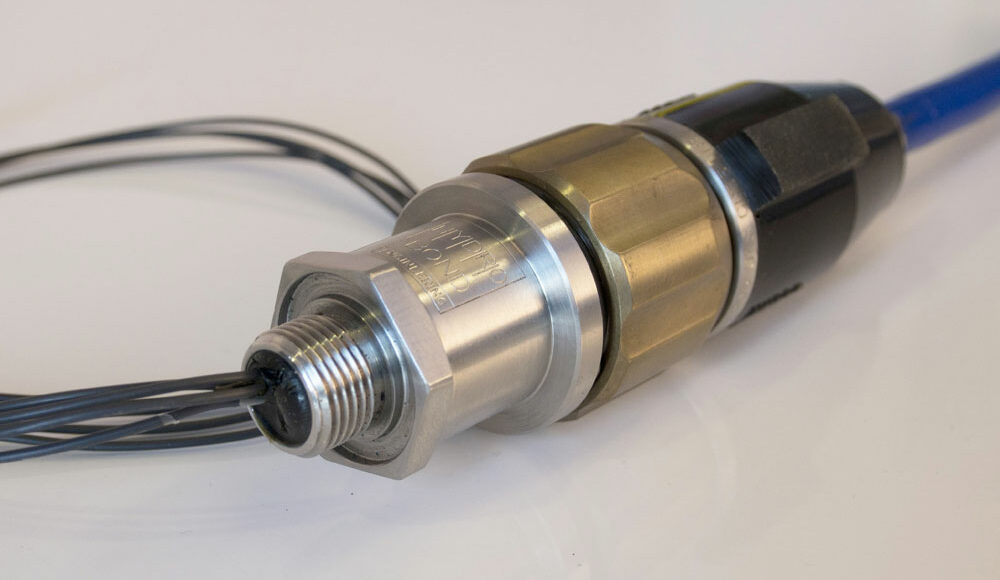

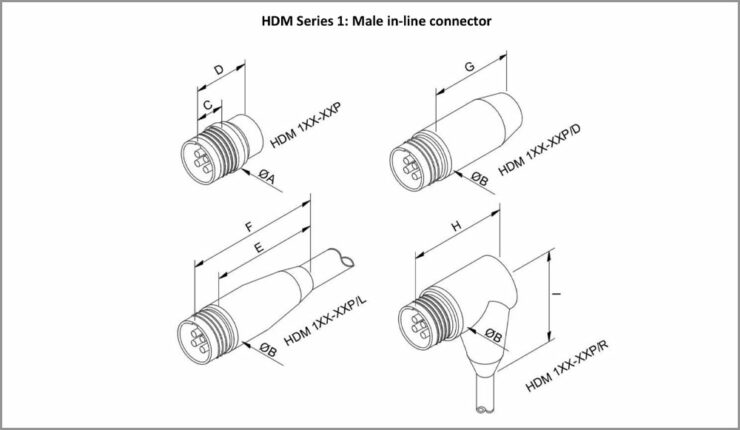

male in-line connector

Specification & Download

Please click on the product below for 'drop-down' specification box, PDF download, and e-mail enquiry option.

  • HDM Hydro Bond Deck Mate HDM: Hydro Bond Deck Mate, Electrical Connector, Metal Keyed
    SHELL SIZE: 2 to 11
    DEPTH RATING: 3450 MSW (up to 6900 MSW available on request)
    VOLTAGE RATED: 10,000 V DC RMS (higher on request)
    CURRENT RATING: 95 Amps (higher on request)
    PIN DENSITY: 2 to 110-ways
    MATERIAL: 316 Stainless Steel; Titanium, Aluminium Silicon Bronze, Bronze etc.
    MOULDING OPTIONS: Polyurethane (PU), Polyethylene (PE)
    TECHNICAL PDF DOWNLOAD:HDM Hydro Bond Deck Mate
    e-mail your enquiry
  • HDR connector HRS: Hydro Rubber Sealing, Underwater Mateable Electrical Connectors
    SHELL SIZE: 4 to 11
    DEPTH RATING: 2440 MSW
    VOLTAGE RATED: 3,300 Volts RMS
    CURRENT RATING: 750 Amps
    PIN DENSITY: 1 to 70-ways
    MATERIAL: 316 Stainless Steel; Titanium, Aluminium Silicon Bronze, Bronze etc.
    MOULDING OPTIONS: Polyurethane (PU), Polyethylene (PE)
    TECHNICAL PDF DOWNLOAD:HRS: Hydro Rubber Sealing, Underwater Mateable Electrical Connectors
    e-mail your enquiry
  • HDR connector HRM: (Rubber Moulded) range of Connectors
    SHELL SIZE: Standard, Micro & Low Profile
    DEPTH RATING: 600 bar
    VOLTAGE RATED: up to 600v
    CURRENT RATING: up to 60A
    PIN DENSITY: 1-16 pin
    MATERIAL: Brass, Stainless Steel, Titanium
    MOULDING OPTIONS: Standard (neoprene & PU subsea cables) bespoke, unmoulded
    TECHNICAL PDF DOWNLOAD:HRM: (Rubber Moulded) range of Connectors
    e-mail your enquiry
